SONY UWP-D UTX-M40
article code
son.utxm40k21

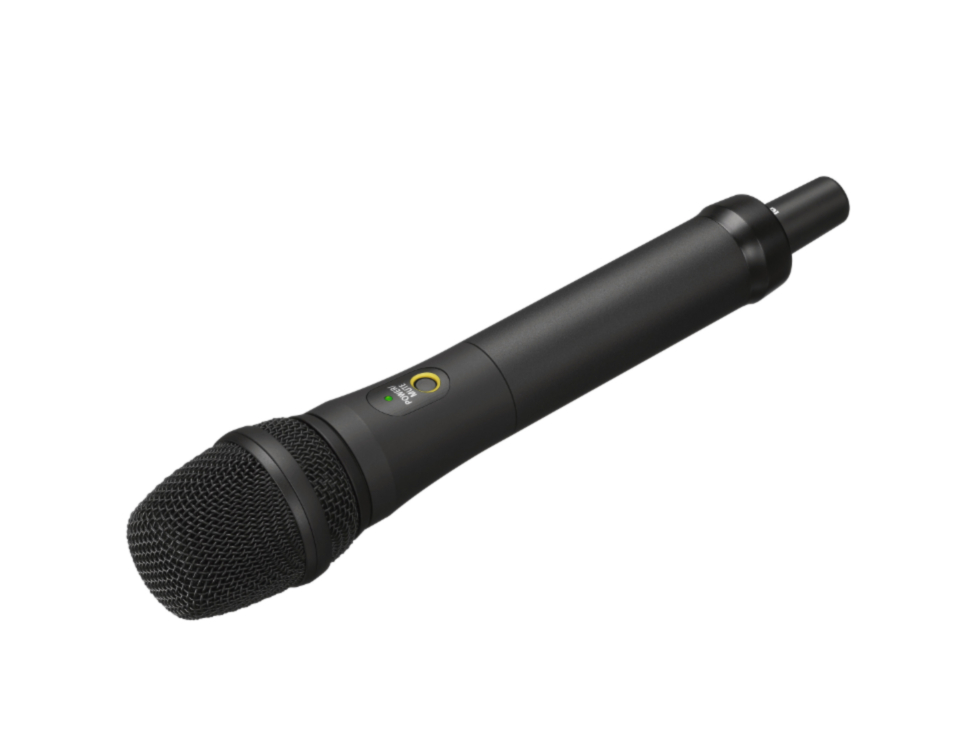

Sony UWP-D UTX-M40/21 dynamic cardioid handheld transmitter, incl. clamp, ch 21-29 470-542 MHz
€ 369.00 List Price
€ 369.00 Our Price € 304.96 Our Price
The UTX-M40 uni-directional handheld microphone offers the sound quality of digital audio processing combined with the reliability of analogue FM modulation. The microphone transmitter has the option to use interchangeable heads with over 40 different capsules from various manufacturers available. The UWP-D Series system provides superb transient response performance for all ENG / EFP production applications and the microphone is ideally suited for A/V presentation applications.
FEATURES:
- high quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P40, URX-P41D, URX-P03, URX-P03D, and URX-S03D receivers)
- interchangeable head for wide choice of microphone capsules
- auto gain mode volume control
- +15 dB gain volume boost mode for off-mic audio
- transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- variable muting function
- compatibility with Sony WL-800/UWP/UWP-D series
- high visibility OLED display, ideal for indoor/outdoor use
- includes microphone holder
UTX-M40 HANDHELD TRANSMITTER:
- oscillator type: crystal-controlled PLL synthesizer
- antenna type: 1/4 wavelength wire antenna
- carrier frequencies: 21CE 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
- RF output power: 30 mW/5 mW selectable
- capsule type: dynamic
- directivity: uni-directional
- reference audio input level: -55 dBV (GAIN MODE set to NORMAL, 0 dB attenuation)
- maximum audio input level: 151 dB SPL (21 dB attenuation, using supplied microphone unit )
- audio attenuator adjustment range: 0 dB to 21 dB (3 dB steps)
- frequency response: 70 Hz to 18 kHz
- signal-to-noise ratio: 60 dB (-60 dBV, 1 kHz sine wave input), 102 dB (GAIN MODE set to AUTO GAIN, max deviation, A-weighted) and 96 dB (GAIN MODE set to NORMAL, max deviation, A-weighted)
- distortion: 0.9% or less (-60 dBV, 1 kHz input )
- audio delay: approx. 0.35 ms
- tone signal frequency: UWP-D compander mode 32.382 kHz, UWP compander mode 32 kHz and WL800 compander mode 32.768 kHz
- display: OLED
- power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
- battery life: approx. 8 hours with output power of 30 mW
- operating temperature: 0 °C to 50 °C
- storage/transport temperature: -20 °C to +55 °C
- dimensions: 48 x 258 mm (diameter / length)
- mass: approx. 255 g (excluding batteries)
| Brand | Sony |
|---|
