SONY UWP-D UTX-B40
article code
son.utxb40k21
Sony UWP-D UTX-B40/21 belt-pack transmitter, incl. belt clip, omni-directional microphone and accessories, ch 21-29 470-542 MHz
€ 369.00 List Price
€ 369.00 Our Price € 304.96 Our Price

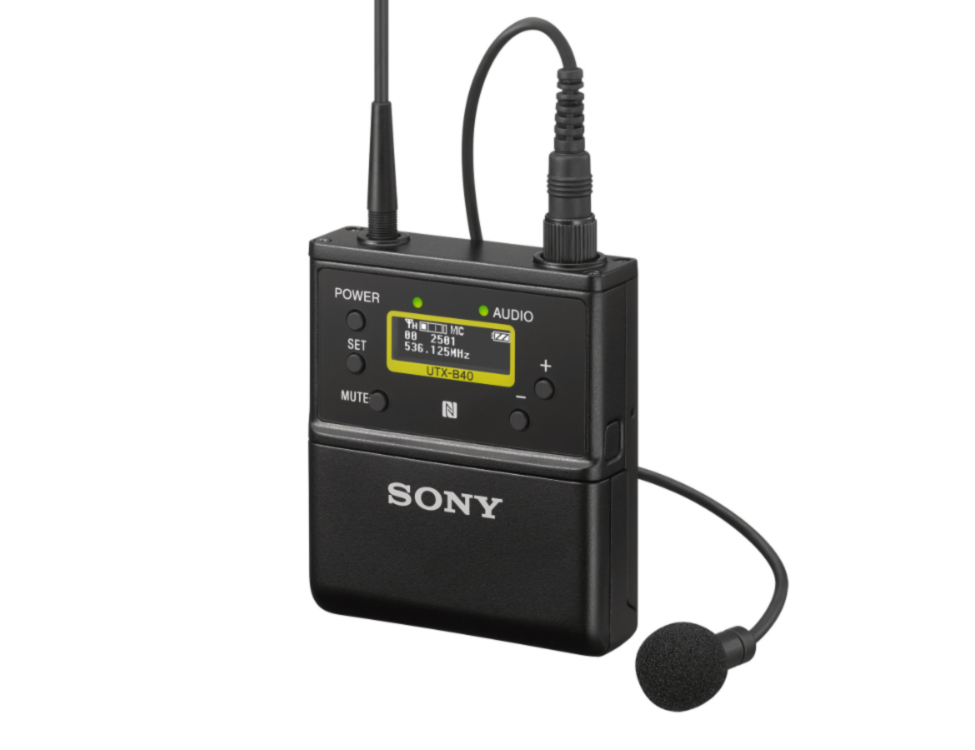

The UWP-D series UTX-B40 is a compact and lightweight body-pack transmitter and comes supplied with an omni-directional lavalier microphone. The system offers the reliability of FM coupled with the clarity of digital audio signal processing. This bodypack transmitter (with omni lav mic) is ideally suited for news gathering, interviews, talk shows and conferences.
FEATURES:
- high quality sound with Sony digital audio processing
- NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P40, URX-P41D, URX-P03, URX-P03D and URX-S03D receivers)
- auto gain mode volume control
- +15 dB gain volume boost mode for off-mic audio
- line input
- transmitter frequency sent to receiver for matching multiple receivers to one transmitter
- variable muting function
- compatibility with Sony WL-800/UWP/UWP-D series
- high visibility OLED display, ideal for indoor/outdoor use
- USB connector for power supply
- includes belt clip, ECM-V1BMP omni-directional lavalier microphone with windscreen and clip
UTX-B40 BODYPACK TRANSMITTER:
- oscillator type: crystal-controlled PLL synthesizer
- antenna type: 1/4 wave length wire antenna
- carrier frequencies: 21CE 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
- RF output power: 30 mW/5 mW selectable
- capsule type: elect retcondenser
- directivity: omni-directional
- input connector: 3.5 mm diameter 3-pole locking mini jack
- reference audio input level: -60 dBV (MIC input, GAIN MODE set to NORMAL, 0 dB attenuation) and +4 dBu (LINE input)
- audio attenuator adjustment range: 0 dB to 27 dB (3 dB steps)
- frequency response: 23 Hz to 18 kHz
- signal-to-noise ratio: 60 dB (-60 dBV, 1 kHz input), 102 dB (GAIN MODE set to AUTO GAIN, max.) and 96 dB (GAIN MODE set to NORMAL, max.)
- distortion: 0.9% or less (-60 dBV, 1 kHz input)
- audio delay: approx. 0.35 ms
- tone signal frequency: in UWP-D compander mode 32.382 kHz, in UWP compander mode 32 kHz and in WL800 compander mode 32.768 kHz
- display: OLED
- power requirements: DC 3.0 V (two LR6/AA size alkaline batteries) and DC 5.0 V (supplied from USB Type-C connector)
- battery life: approx. 8 hours with output power of 30 mW
- operating temperature: 0 °C to 50 °C
- storage/transport temperature: -20 °C to +55 °C
- dimensions (W x H x D in mm): 63 x 73 x 19 (excluding antenna)
- mass: approx. 83 g (excluding batteries)
ECM-V1BMP LAVALIER MICROPHONE:
- Type: electret condenser microphone
- frequency response: 40 Hz to 20,000 Hz
- directivity: omni-directional
- sensitivity: -43.0 ±3 dB (0 dB =1 V/Pa, at 1 kHz)
- operating temperature: 0 °C to 50 °C
- storage temperature: -20 °C to 55 °C
- cable: 2.3 mm dia., 2-conductor shielded cable, 1.2 m long
- weight: approx. 16.2 g
| Brand | Sony |
|---|
