SCHOEPS CCM 4VXP K
article code
sch.121706

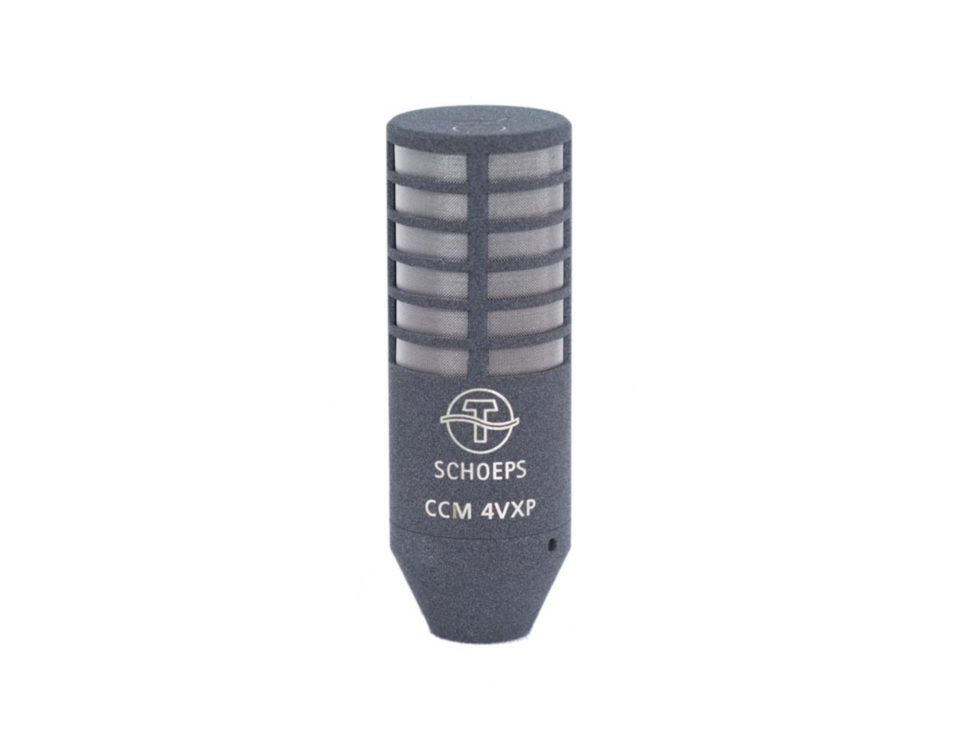

Schoeps CCM 4VXP K microphone, side-axis cardioid with considerable low frequency attenuation, very close pickup, with fixed 5m cable to XLR3M, SGC stand mount and premium case
€ 1,819.84 Our Price € 1,504.00 Our Price
This cardioid microphone, with its main axis along its side, improves speech intelligibility in very loud environments. It is designed for the very closest speech pickup, i.e. directly in front of the speaker's mouth. Its low-frequency rolloff is compensated by proximity effect. Thus it has (up to the point of its high-frequency emphasis) a flat frequency response for the speaker's voice, while showing a rolloff at low frequencies for all sound that originates from a greater distance. As a result, background sounds are picked up less strongly than the person speaking.
FEATURES:
- cardioid for lateral pickup
- for pickup of speech or music at close range (under 10cm)
- considerable attenuation of low frequencies
- preferred applications: close speech pickup, also available in the HSC 4VP headset
ALL CCM's:
- current consumption with 12V: 8mA
- current consumption with 48V: 4mA
- impedance: 90 Ohms
- minimum recommended load impedance: 600 Ohms
- low-cut frequency: 20Hz
- length (L version) without connector: 46 to 58 mm
- length (U version): 46 to 58 mm
- diameter: 20mm
- weight (U-version): 33 g
- weight (L-version): 43 g
- surface finish: matte grey
MK 4 VXP:
- frequency range: close pick-up
- sensitivity: 10mV/Pa
- equivalent noise level (A-weighted): 14dB-A
- equivalent noise level (CCIR): 25dB
- signal-to-noise ratio (A-weighted): 80dB-A
- maximum sound pressure level at 0.5% THD: 134dB-SPL
| Brand | Schoeps |
|---|
