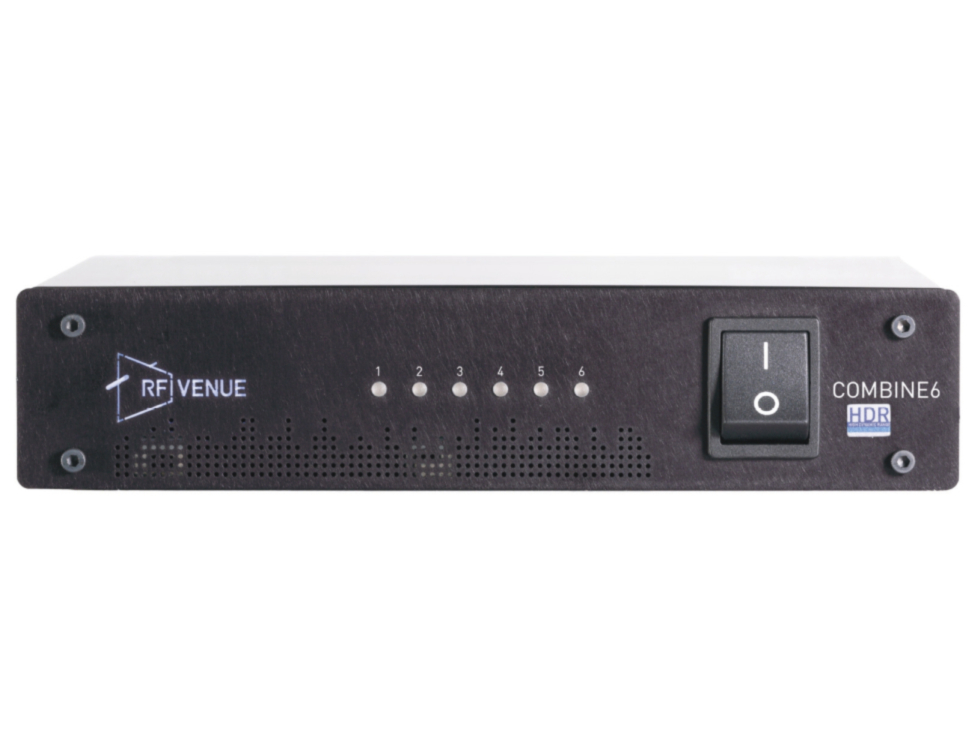

RF VENUE COMBINE6 HDR
The COMBINE6 HDR is a high performance signal combiner for in-ear monitor systems (IEMs). In a half-rack-space enclosure, it combines up to six IEM transmitter outputs together to a single antenna output.
The active circuitry was designed with RF Venue's HDR (High Dynamic Range) approach that increases IEM signal quality by lowering intermodulation distortion, and improves the system perfromance for both IEMs and wireless microphones sharing the same RF spectrum.
The COMBINE6 HDR includes a built-in passive expansion circuit. This allows fora second unit to be added for a total of 12 IEM channels in a single rack space (1RU). Included in the package are rack ears and a joining plate so you can mount it alone or with another RF Venue half-rack device in a single rack space.
KEY FEATURES:
- high performance: HDR increased reliability, lower noise floor, more open channels
- half rack size: takes up less space
- highly expandable: up to 12 channels on a single antenna
WHAT'S IN THE BOX:
- 1x COMBINE6 HDR
- 1x 12V 40-watt power supply
- 1x IEC power cable
- 1x set of rack ears (short and long)
- 1x half-rack connecting plate and mounting hardware kit
- frequency range (USA + CAN): 470 608 MHz
- frequency range (INT'L): 470 698 MHz
- RF inputs: 6 BNC inputs
- maximum input power: 60 mW (+18 dBm) per port
- input port isolation: 50 dB, typical
- signal overload threshold: 17 dBm, typical
- passive circuit loss: 4 dB, typical
- DC power supply: external, 100 240 VAC, 50/60 Hz, 1 A
- DC power In: +12 V, 3 A
- dimensions (D x W x H): 223.5 x 210 x 44.5 mm
- weight: 1.6 kg
| Brand | RF Venue |
|---|
