NEUMANN KM 143A nx
article code
ne.km143anx

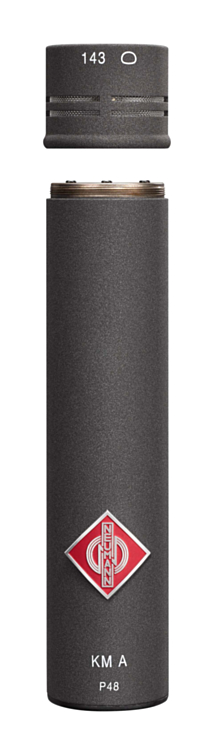

Neumann KM143Anx wide-angle cardioid microphone with analog P48V output stage, nextel black
€ 1,498.00 Our Price € 1,238.02 Our Price
The combination of the capsule KK 143 with the analog output stage KM A is only one of the numerous options within the modular Neumann KM A/D small diaphragm microphone system. Eight different small diaphragm capsules (KK 120 up to KK 185) may be combined with either an analog output stage (KM A) or a digital AES 42 output stage (KM D). A comprehensive range of accessories ensures adaptability to the most diverse fields of application.
The KK 143 is a pressure gradient transducer with wide-angle cardioid characteristic. Attenuation: 4 dB at 90°, 8 dB at 135°, and 11 dB at 180°. The frequency response for sound sources within an angle of +/- 90° (off axis) is parallel up to 12 kHz.
FEATURES:
- directional characteristic: wide-angle cardioid
- part of the modular microphone system KM A/D
- comprehensive range of accessories
- acoustical operating principle: pressure gradient transducer
- directional pattern: wide cardioid
- frequency range: 20 Hz up to 20 kHz
- sensitivity at 1 kHz into 1 kOhm: 15 mV/Pa
- rated impedance: 50 Ohms
- rated load impedance: 1000 Ohms
- equivalent noise level, CCIR: 22 dB
- equivalent noise level, A-weighted: 13 dB-A
- maximum SPL for THD 0.5%: 138 dB
- maximum SPL for THD 0.5% with preattenuation: 148 dB
- signal-to-noise ratio, CCIR (re. 94 dB SPL): 70 dB
- signal-to-noise ratio, A-weighted (re. 94 dB SPL): 81 dB
- supply voltage (P48, IEC 61938): 48 V
- current consumption (P48, IEC 61938): max. 3.5 mA
- matching connector: XLR 3 F
- weight (output stage): 70 g
- weight (capsule only): 15 g
- diameter: 22 mm
- length (capsule only): 18 mm
- length (microphone): 108 mm
| Brand | Neumann |
|---|
