NEUMANN BCM 104
article code
ne.bcm104

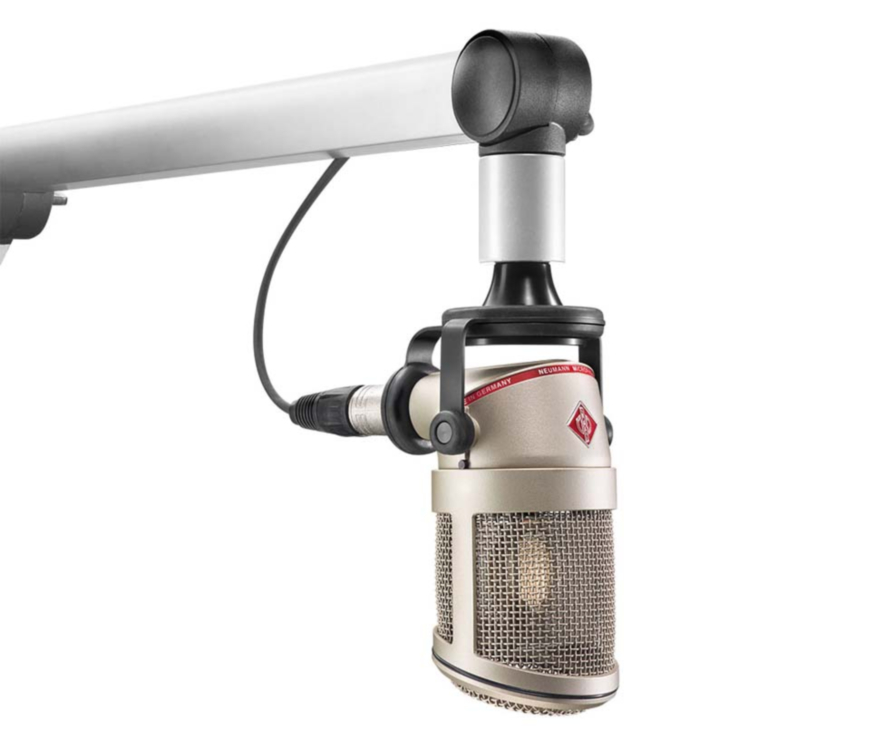

Neumann BCM104 large diaphragm cardioid condenser microphone, nickel
€ 1,150.00 Our Price € 950.41 Our Price
The BCM104 is a dedicated broadcast microphone for radio announcers and DJs, designed to convey emotion with Neumann perfection. Its functionally optimized design features an integrated pop screen and a shock protected large diaphragm condenser capsule, specially developed for speech. Transformerless circuitry ensures a direct, noise-free sound.
FEATURES:
- specially designed large diaphragm condenser capsule
- tight cardioid pattern
- integrated pop screen and shock mount
- headgrille twists off easily for quick cleaning
- internal pad and low cut switches
- acoustical operating principle: pressure gradient transducer
- directional pattern: cardioid
- frequency range: 20 Hz up to 20 kHz
- sensitivity at 1 kHz into 1 kohm: 22 mV/Pa =-33.1 dBV +/1 dB
- sensitivity at -14 dB attenuation: 4.4 mV/Pa
- rated impedance: 50 ohms
- rated load impedance: 1 kohms
- equivalent noise level, CCIR: 18 dB
- equivalent noise level, A-weighted: 7 dB-A
- maximum SPL for THD 0.5%: 138 dB
- maximum SPL for THD 0.5% with preattenuation: 152 dB
- signal-to-noise ratio, CCIR (re. 94 dB SPL): 76 dB
- signal-to-noise ratio, A-weighted (re. 94 dB SPL): 87 dB
- maximum output voltage: 10 dBu
- supply voltage (P48, IEC 61938): 48 V +/4 V
- current consumption (P48, IEC 61938): 3.2 mA
- matching connector: XLR 3 F
- weight: 500 g
- diameter: 64 mm
- length: 85 mm
- height: 110 mm (without suspension)
| Brand | Neumann |
|---|
