FOSTEX 6301ND
article code
fos.6301nd

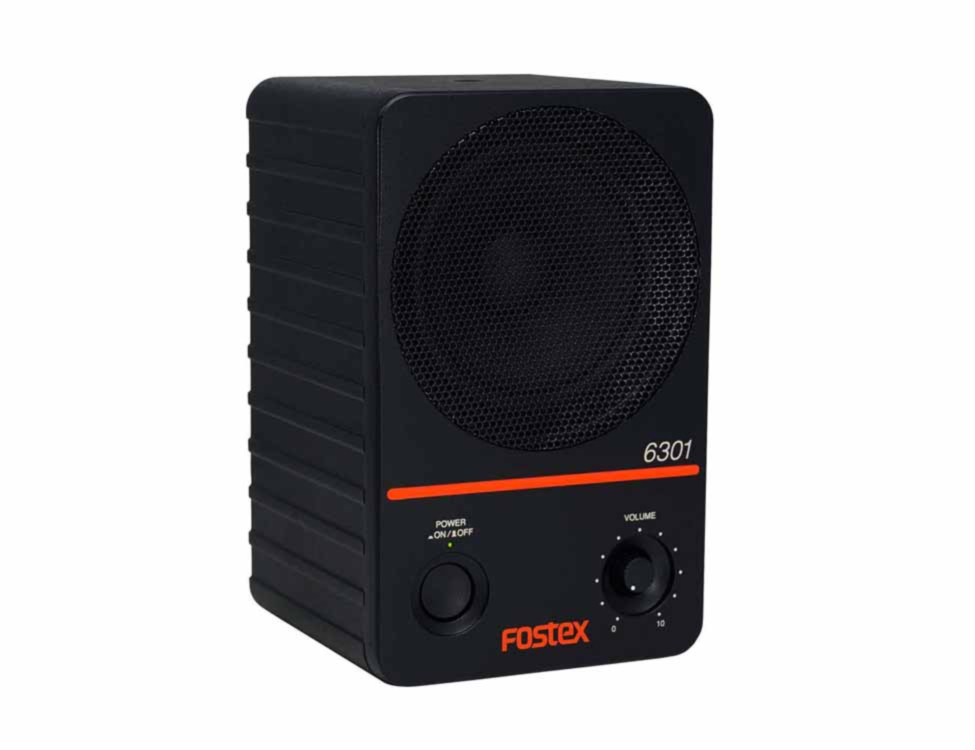

Fostex 6301ND active monitor, AES/EBU XLR + analog unbalanced 6.35mm jack
€ 395.87 List Price
€ 407.77 Our Price € 337.00 Our Price
The model 6301-series have been on the market since 1982 as the standard active monitor speaker in the broadcast and production facilities and now Fostex has re-designed the speakers with the latest D-class power amplifier technology, a new driver unit and an energy saving "auto stand-by" function.
- 20W D-class power amplifier for higher output level and less power consumption with no heat sink
- dedicated 4" full-range driver for clear audio reproduction
- traditional rugged enclosure of aluminum die-cast with the physically identical height and width to the current B-series
- flat panel design to avoid inadvertent power-off or level change
- auto stand-by mode (compliant to ErP directive) for energy saving
- detachable IEC-type power inlet with multi-voltage power handling
- optional mounting bracket (EB-6301) for wall mounting with variable angle adjustments
SPEAKER SECTION
- enclosure type: closed
- unit: 4" full range
- frequency response: 70Hz to 15kHz
- sound pressure level: 85dB/W (1m)
- maximum SPL: 98dB
AMPLIFIER SECTION
- 1/4" TS phone (unbalanced) input impedance: 10kOhm or more
- 1/4" TS phone (unbalanced) input sensitivity: -14dBV (0.2Vr.m.s.)
- XLR-3-31 (IEC 60958 AES/EBU) input impedance: 110Ohm or more
- XLR-3-31 (IEC 60958 AES/EBU) input sensitivity: -12dBFS
- output (thru): XLR-3-32 (IEC 60958 AES/EBU) rated output: 20W
- total harmonic distortion: 0.05% (1kHz/1W output)
- residual noise (analog): -70dBV or less
- residual noise (AES/EBU): -65dBV or less
- auto stand-by: activated after approx. 25 min of continuous input lower than the threshold level
GENERAL
- dimensions: 120 (W) x 189 (H) x 120 (D) mm
- weight: 2.2kgs
- power requirement: AC 100 to 240V (50/60Hz)
- power consumption: 10W (less than 0.5W in stand-by mode)
| Brand | Fostex |
|---|
