DPA ST4006C

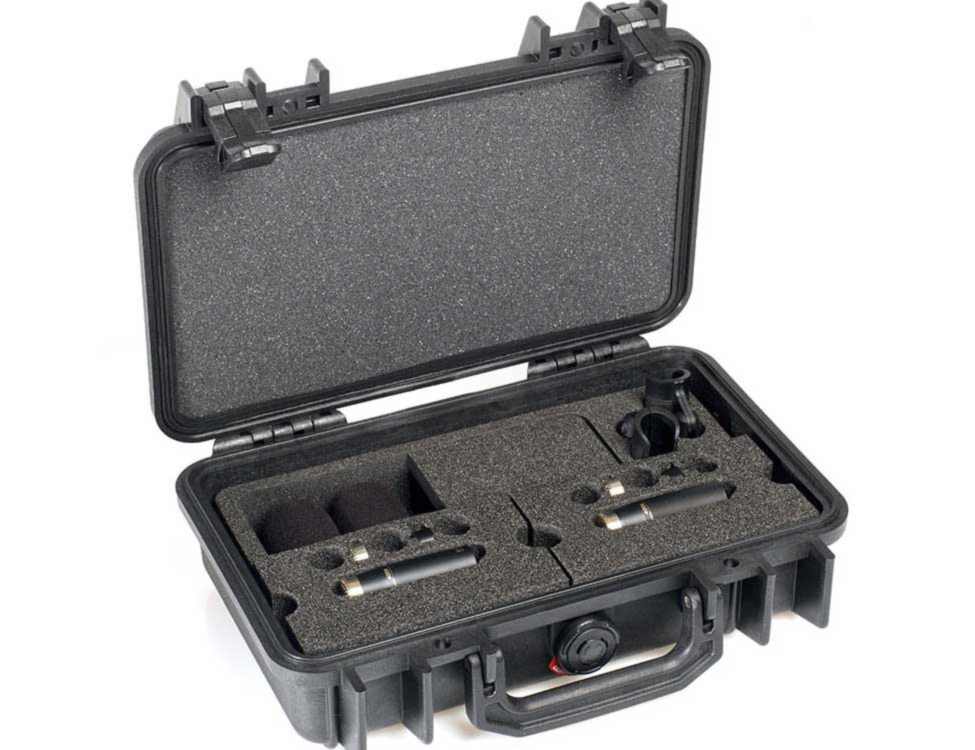

Whenever a small, lightweight, inconspicuous microphone for top-quality recording is required, a d:dicate 4006C microphone is the right choice. They come as a hand-matched pair that offers the truest capture of stereo sound available. Even though the standard tolerances on our d:dicate microphones are extremely low, a stereo match is even closer. These specially selected d:dicate 4006C microphones are matched within +/-0.5dB on both frequency response and sensitivity. The pair comes in a heavy-duty Peli Case for safe transportation and easy access to the microphones and accessories.
The mic capsule: the MMC4006 omnidirectional microphone capsule offers total transparency in any recording situation. It picks up incredible detail and depth of sound. The definition of its high-frequency characteristics across a wide range of instruments is impressive. It offers natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10 to 20kHz (+/-2dB). A selection of accessories is available, including acoustic pressure equalizers, a nose cone and interchangeable protection grids. These accessories can acoustically transform the mic. By changing grids, it is possible to gain several unique frequency responses and directional characteristics from the mic. Furthermore, these accessories will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.
A truly flexible range: the d:dicate 4006C omnidirectional microphone, compact is part of the flexible d:dicate microphones series. It combines the MMC4006 omnidirectional capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more "body" to the low end than the d:dicate 4006A omnidirectional microphone. Another option, for the true audiophile, is the d:dicate 4006A omnidirectional microphone. It offers low distortion and totally accurate and faithful sound. At any time, and with no tools needed, it is possible to transform the d:dicate 4006C omnidirectional microphone, compact into a new configuration. You can combine it with another d:dicate or d:facto microphone capsule or preamplifier. The d:dicate 4006C omnidirectional microphone, compact is also available individually.
FEATURES:
- carefully matched microphones
- natural sound
- high sensitivity
- low noise-floor
- extremely linear frequency
- sturdy peli case for transportation and protection
- Directional pattern: omnidirectional
- Principle of operation: pressure
- Cartridge type: pre-polarized condenser
- Frequency range: 10Hz to 20kHz
- Frequency range, +/-2dB: 20Hz to 20kHz
- Sensitivity, nominal, +/-2dB at 1kHz: 40mV/Pa, -28dB re. 1V/Pa
- Equivalent noise level, A-weighted: typ. 15dB(A) re. 20uPa (max. 17dB(A))
- Equivalent noise level, ITU-R BS.468-4: typ. 27dB (max. 29dB)
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL): typ. 79dB(A)
- Total harmonic distortion (THD): <1% up to 134dB SPL peak
- Dynamic range: typ. 119dB
- Max. SPL, peak before clipping: 139dB
- Output impedance: 100Ohm
- Minimum load impedance: 2kOhm
- Cable drive capability: 100m
- Output balance principle: Impedance balancing with "Active Drive"
- Common mode rejection ratio (CMRR): >50dB
- Power supply (for full performance): 48V Phantom power (+/-4V)
- Current consumption: 2.8mA
- Connector: XLR-3M. pin 1: shield, pin 2: signal + phase, pin 3: phase
- Color: matte black
- Weight: 63g
- Microphone/capsule diameter: 19/16mm
- Microphone length: 64mm
- Maximum output voltage, RMS: 4.5V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C
- Relative humidity (RH): up to 90%
- Matching tolerance (frequency response and sensitivity): +/-0.5dB
- Phase deviation for kit: <5°
| Brand | DPA |
|---|
