DPA ST2006C

article code
d.st2006c

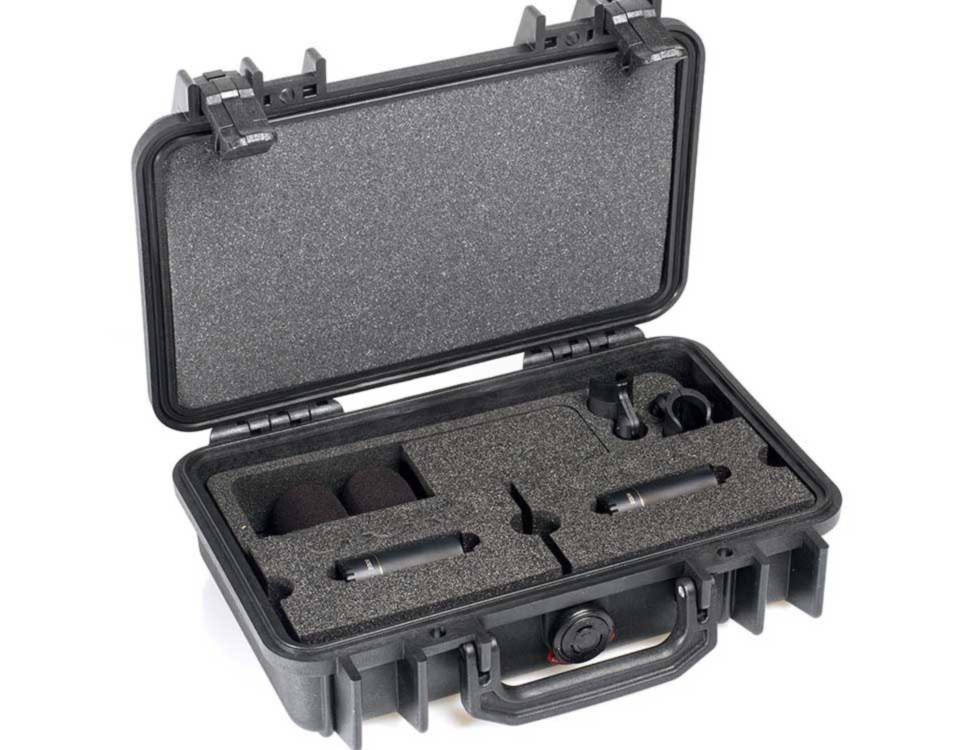

DPA 2006C omni-directional modular stereo microphone kit, incl. 2x 2006C (MMP-C + MMC2006), case, holders and windscreens
€ 1,570.00 List Price
€ 1,789.00 Our Price € 1,478.51 Our Price

A complete stereo pair, two handpicked omnidirectional condenser microphones, selected on sensitivity within +/-1.5dB. Small, lightweight and inconspicuous main AB stereo pair. The mics deliver precise sound and true tone. Meeting classic architecture and installation requirements, these mics can be mounted, hung or concealed to create clean, transparent recordings. This condenser mic bridges the gap between the extreme sound quality of the d:dicate microphones series and our well-known miniature microphones in the d:screet and d:fine series.

The microphone capsule: inside this capsule, two opposite-facing miniature capsules are custom rebuilt. They are placed into a double-diaphragm, one-capsule composition. This combines the advantages of small capsules with the lower inherent noise achieved from a larger diaphragm area. These capsules provide fast impulse response and large frequency bandwidth. The capsules are loaded to the supreme d:dicate microphone series preamplifiers instead of the tiny miniature FET ones. This gives the sound more air and precision. Comparisons with its big brother, the iconic MMC4006 capsule, are inevitable. The relationship between the two can be clearly heard. The MMC2000 series performs as well as more exclusive microphones. It is a premium-class mic capsule and redefines the term value for money.

A truly flexible range: the d:dicate 2006C twin diaphragm cardioid microphone, compact is part of the flexible d:dicate microphones series. It combines the MMC2006 twin diaphragm cardioid capsule with the MMP-C compact preamplifier. This combination offers a subtle character alteration with a bit more "body" to the low end than the d:dicate 2006A twin diaphragm cardioid microphone. It is also much easier to position than other cardioid mics. Another option, for the true audiophile, is the d:dicate 2006A twin diaphragm cardioid microphone. It offers low distortion and totally accurate and faithful sound. At any time, and with no tools needed, it is possible to transform the d:dicate 2006C twin diaphragm cardioid microphone, compact into a new configuration. You can combine it with another d:dicate or d:facto microphone capsule or preamplifier.

FEATURES:

  • sensitivity-selected pair
  • acoustic authenticity
  • linear in a large frequency bandwidth
  • twin diaphragm capsule
  • modular flexibility
  • peli case transportation and protection

  • Directional pattern: omnidirectional
  • Principle of operation: pressure
  • Cartridge type: pre-polarized condenser, Twin-Diaphragm-Capsule
  • Frequency range: 20Hz to 20kHz
  • Frequency range, +/-2dB: 50Hz to 20kHz with typ. 3dB soft boost at 14kHz
  • Sensitivity, nominal, +/-2dB at 1kHz: 40mV/Pa, -28dB re. 1V/Pa
  • Equivalent noise level, A-weighted: typ. 16dB(A) re. 20uPa (max. 18dB(A))
  • Equivalent noise level, ITU-R BS.468-4: typ. 28dB (max. 30dB)
  • S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL): Typ. 78dB(A)
  • Total harmonic distortion (THD): <1% up to 130dB SPL peak
  • Dynamic range: typ. 114dB
  • Max. SPL, peak before clipping: 139dB
  • Output impedance: 100Ohm
  • Minimum load impedance: 2kOhm
  • Cable drive capability: 100m
  • Output balance principle: Impedance balancing with "Active Drive"
  • Common mode rejection ratio (CMRR): >50dB
  • Power supply (for full performance): 48V Phantom power (+/-4V)
  • Current consumption: 2.8mA
  • Connector: XLR-3M. pin 1: shield, pin 2: signal + phase, pin 3: phase
  • Color: matte black
  • Weight: 60g
  • Microphone diameter: 19mm
  • Microphone length: 58mm
  • Maximum output voltage, RMS: 4.5V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C
  • Relative humidity (RH): up to 90%

More Information
BrandDPA
