DPA 5006-11A
A complete surround kit combining three d:dicate 4006A omnidirectional microphones and two d:dicate 4011A cardioid microphones, carefully factory-matched to achieve full precision.
Even though the standard tolerances on the d:dicate microphone series are extremely low, the surround match is even closer.
The specially-selected d:dicate 4006A omnidirectional microphones are matched within +/-0.5dB on both frequency response and sensitivity. The d:dicate 4011A cardioid microphones are matched within +/-1dB.
The natural sound, high sensitivity, low noise-floor and extremely linear frequency response from 10Hz to 20kHz (+/-2dB) of the microphones make the d:dicate 4006A omnidirectional microphones the perfect choice for all AB stereo, Decca Tree or surround main array recordings. The precise reproduction, total transparency and natural-sounding clarity of d:dicate 4006A omnidirectional microphones will provide you with a lifetime of satisfying listening.

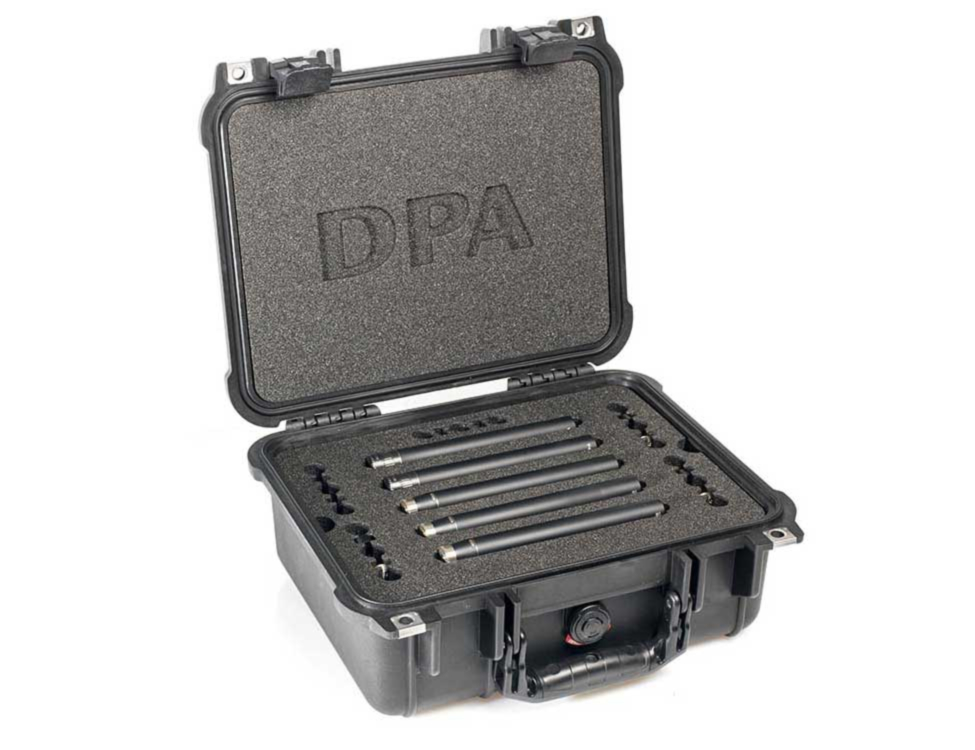

The foam design in the heavy-duty transportation box allows for fast and easy exchange of microphone/accessory inlays.
Features:
- Three omni + two cardioid carefully matched microphones
- Decca Tree front + cardioids rear
- Useful as orchestral main pair
- Peli Case transportation and protection
- Directional pattern (4006A): omnidirectional
- Directional pattern (4011A): cardioid
- Principle of operation (4006A): pressure
- Principle of operation (4011A): pressure gradient
- Cartridge type (overall): pre-polarized condenser
- Frequency range (overall): 10Hz to 20kHz
- Frequency range, +/-2dB (4006A): 10Hz to 20kHz
- Frequency range, +/-2dB @ 30cm (4011A): 40Hz to 20kHz
- Sensitivity, nominal, +/-2dB at 250Hz (4006A): 40mV/Pa, -28dB re. 1V/Pa
- Sensitivity, nominal, +/-2dB at 1kHz (4011A): 10mV/Pa, -40dB re. 1V/Pa
- Equivalent noise level, A-weighted (4006A): typ. 15dB(A) re. 20uPa (max. 17dB(A))
- Equivalent noise level, A-weighted (4011A): typ. 18dB(A) re. 20uPa (max. 20dB(A))
- Equivalent noise level, ITU-R BS.468-4 (4006A): typ. 27dB (max. 29dB)
- Equivalent noise level, ITU-R BS.468-4 (4011A): typ. 25dB (correct with the attenuator in 0dB or -20dB setting)
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL) (4006A): typ. 79dB(A)
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL) (4011A): typ. 76dB(A)
- Total harmonic distortion (THD) (overall): <1% up to 139dB SPL peak
- Dynamic range (4006A): typ. 124dB
- Dynamic range (4011A): typ. 121dB
- Max. SPL, peak before clipping (4006A): 147dB
- Max. SPL, peak before clipping (4011A): 159dB
- Switchable attenuator, filters etc.: 0dB / -20dB
- Output impedance (overall): <20Ohm
- Minimum load impedance (overall): 2kOhm
- Cable drive capability (overall): 100m
- Output balance principle: impedance balancing with "Active Drive"
- Common mode rejection ratio (CMRR) (overall): >60dB
- Power supply (for full performance): 48V phantom power +/-4V
- Current consumption (overall): 2.8mA
- Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: phase
- Color: matte black
- Weight (4006A): 163 g
- Weight (4011A): 158 g
- Microphone diameter (4006A): 16 to 19mm
- Microphone diameter (4011A): 19mm
- Capsule diameter (4006A): 16 mm
- Capsule diameter (4011A): 19mm
- Microphone length (overall): 170mm
- Maximum output voltage, RMS (overall): >5V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range (overall): -40°C to 45°C
- Relative humidity (RH) (overall): up to 90%
- Matching tolerance (frequency response and sensitivity) 4006A: +/-0.5 dB
- Matching tolerance (frequency response and sensitivity) 4011A: +/-1 dB
- Phase deviation for 4006A: <5°
- Phase deviation for 4011A: <10°
