DPA 4099 Classic touring kit, 10x 4099, accessories, Peli case

article code
d.kit4099dc10c
DPA 4099 CORE Classic touring kit, incl. 10x 4099 (loud SPL) instrument microphones with accessories, Peli case
€ 5,155.00 List Price
€ 5,879.00 Our Price € 4,858.68 Our Price

Ready for on-the-road use for rental companies, musicians or theatres, the 4099 Classic Touring Kit offers microphones and a selection of accessories selected for typical use in an acoustic music setting. This kit features a number of 4099 CORE instrument microphones for Loud SPL, which are perfect for use on a wide range of instruments - from the flute to the guitar and everything in between.

The 4099 is already the recognized standard for this type of microphone and the CORE version adds just another layer of sound quality that further distances this mic from its competitors. 4099 CORE brings more clarity and details to your music, across the entire dynamic range. Anyone looking for the very highest sound quality should choose CORE - every musician, live sound engineer and anyone else who takes pride in quality audio.

CORE by DPA is a powerful new technology at the heart of DPA miniature microphones. We've minimized distortion. From pianissimo to forte, you will experience increased clarity and openness.

From the piano to guitar, strings to woodwinds, brass to percussion, the 4099 Series sounds equally impressive on them all. This one microphone model can beautifully reinforce an entire orchestra. You can move the mic to another instrument, just make sure you have the right type of clip to mount it correctly. The award-winning 4099 Series gives you a much more natural sound than any clip-on microphone or pickup. This condenser microphone rejects unwanted noise and accurately captures the true voice of your acoustic instrument.

This microphone comes in two versions:

  • 4099 CORE Mic, Loud SPL (red marking on gooseneck) used to close-mike most types of instruments
  • 4099 CORE Mic, Extreme SPL (yellow marking on gooseneck) used to close-mike extremely loud instruments, such as drums and some brass

The 4099 CORE also features an enhanced shock mount design, providing excellent isolation from handling noise and rumble. Detachable cables are available in heavy duty or lightweight versions, depending on the application - both are designed to withstand the rigors of daily use. A versatile, integrated gooseneck extender provides easy and repeatable mounting.

FEATURES:

  • CORE by DPA technology inside
  • supercardioid condenser microphone
  • handles high SPLs
  • superior gain-before-feedback
  • flexible and easy mounting
  • gentle and easy to mount on the instrument
  • detachable cable and a versatile gooseneck extender

INCLUDED WITH:

  • 10x 4099-DC-1: 4099 CORE microphone, Loud SPL

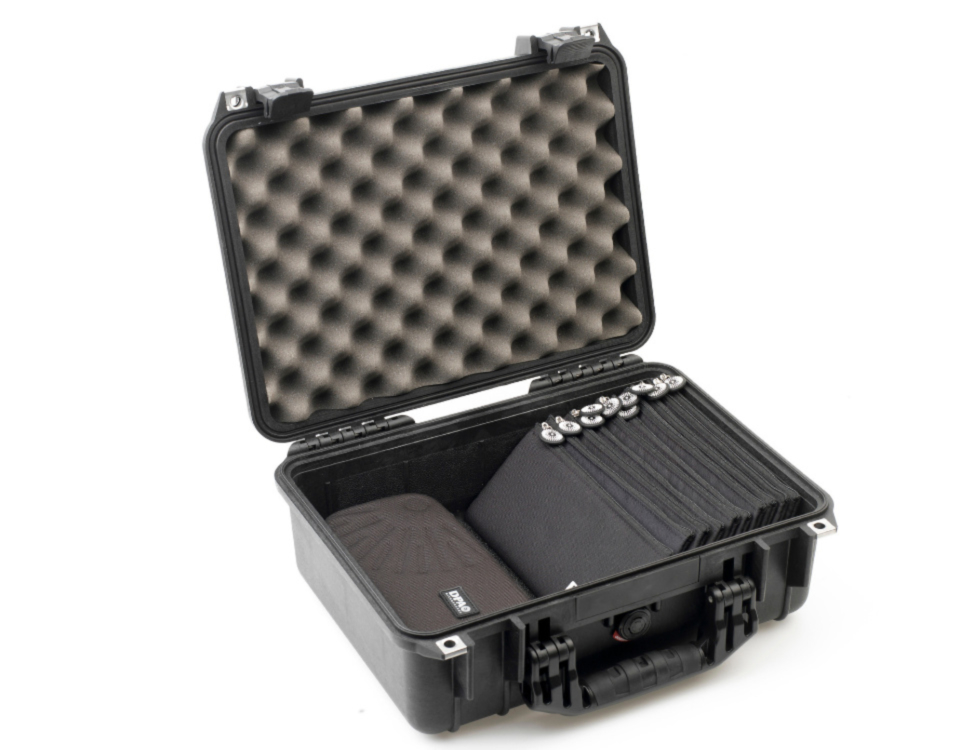

  • 1x Peli case
  • 10x extension cables
  • 10x DAD6001-BC Microdot to XLR-adapter
  • 2x BC4099 clip for upright bass
  • 8x VC4099 clip for violin and mandolin
  • 4x GC4099 clip for guitar
  • 2x CC4099 clip for cello
  • 2x PC4099 clip for piano
  • 2x STC4099 clip for sax and trumpet
  • 2x UC4099 universal clip
  • 2x CM4099 clamp mount
  • 1x SM4099 stand mount

GENERAL:

  • directional pattern: supercardioid
  • principle of operation: pressure gradient
  • cartridge type: pre-polarized condenser
  • frequency response: 20Hz-20 kHz
  • effective frequency range +/-2 dB at 20 cm: 80Hz-15kHz with 2 dB soft boost at 10-12 kHz & second order low-cut filter at 80 Hz with DAD4099-BC
  • sensitivity, nominal, +/-3 at 1kHz: 6 mV/Pa -44dB re. 1V/Pa
  • equivalent noise level, A-weighted: typ. 23dB(A) re.20µPa (max.26 dB(A))
  • distortion, THD<1%: 128dB SPL RMS, 131dB SPL peak
  • dynamic range: typ. 108dB
  • max. SPL, THD 10%: 142dB SPL peak
  • rated output impedance: from MicroDot: 30-40 Ohm
  • rated output impedance: from DAD4099-BC or DAD6001-BC: 100 Ohm
  • cable drive capability: up to 300 m with DAD6001-BC/DAD4099-BC XLR adapter
  • output balance principle: signal balanced with DAD4099-BC or DAD6001-BC XLR adapter
  • common mode rejection ratio (CMRR): > 60 dB from 50 Hz to 15 kHz with DAD4099-BC or DAD6001-BC XLR adapter
  • power supply (for full performance): for wireless systems: min. 5V-max. 10V through DPA adapter
  • power supply (with DAD6001-BC or DAD4099-BC): P48 (Phantom Power), will work from 12V
  • current consumption: typ. 1.5 mA (microphone) & 3.5 mA with DAD4099-BC or DAD6001-BC XLR adapter
  • connector: MicroDot
  • color: black

WEIGHT:

  • microphone: 17g
  • instrument microphone clamp mount (CM4099): 16g
  • instrument microphone clip for accordion (AC4099): 5g
  • instrument microphone clip for bass (BC4099): 20g
  • instrument microphone clip for cello (CC4099): 13g
  • instrument microphone clip for drum (DC4099): 13g
  • instrument microphone clip for guitar (GC4099): 12g
  • instrument microphone clip for piano (PC4099): 19g
  • instrument microphone clip for sax and trumpet (STC4099): 7g
  • instrument microphone clip for violin and mandolin (VC4099): 10g
  • universal instrument microphone clip (UC4099): 15g
  • stand mount for instrument microphone (SM4099): 24g
  • cold Shoe Mount with standard 1/4" in thread (CS4099): 5g

DIMENSIONS:

  • microphone diameter: 5.7 mm
  • microphone length: 45 mm
  • cable length: 1.8 m
  • cable diameter: 1.6 mm/2.2 mm
  • polarity: +V at MicroDot pin for positive sound pressure (and pin 2 on DAD4099-BC or DAD6001-BC XLR adapter)
  • temperature range: -40°C to 45°C
  • relative humidity (RH): up to 90%
  • gooseneck length: 140 mm
  • sensitivity selection tolerance (at 1 kHz): 1dB
