DPA 4071 CORE+ film kit
DPA has collected the award-winning miniature lavalier microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.
Used with the vast array of complimentary accessories, the miniature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.
4071 FILM MICROPHONE KIT:
This microphone kit is made for film or TV productions where the microphone needs to be invisible.
It contains a 4071 Omnidirectional Microphone, Presence Boost with our reinforced cable relief (pre-equalized for speech clarity). Also included are various microphone concealment fixtures, specially designed to solve both concealment and clothing noise problems.
The 4071 Omnidirectional Microphone, Presence Boost is an outstanding speech and vocal mic. It makes voice heard and intelligible. It is also resistant to moisture, extreme temperature change and humidity.
When recording voices from mic placement on a performer's body, no frequency below 100 Hz is attractive. For this reason, an acoustical low-cut has been incorporated in the mic capsule so the built-in preamplifier (and the wireless system) will have much larger headroom. Furthermore, it removes distant rumbling from cars, trains, airplanes, etc.

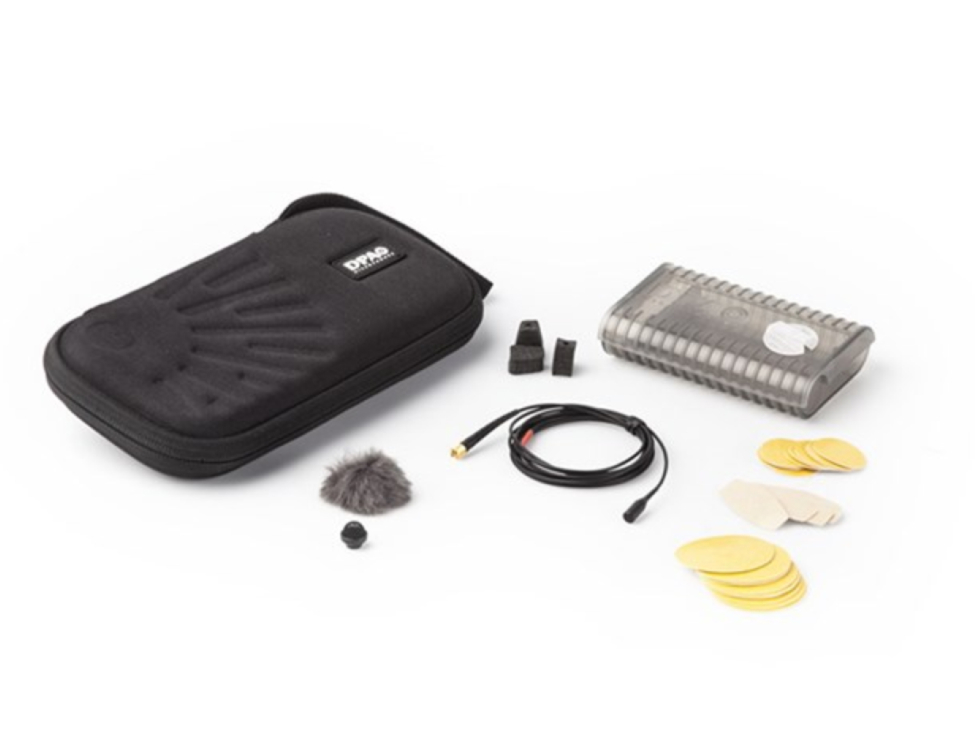

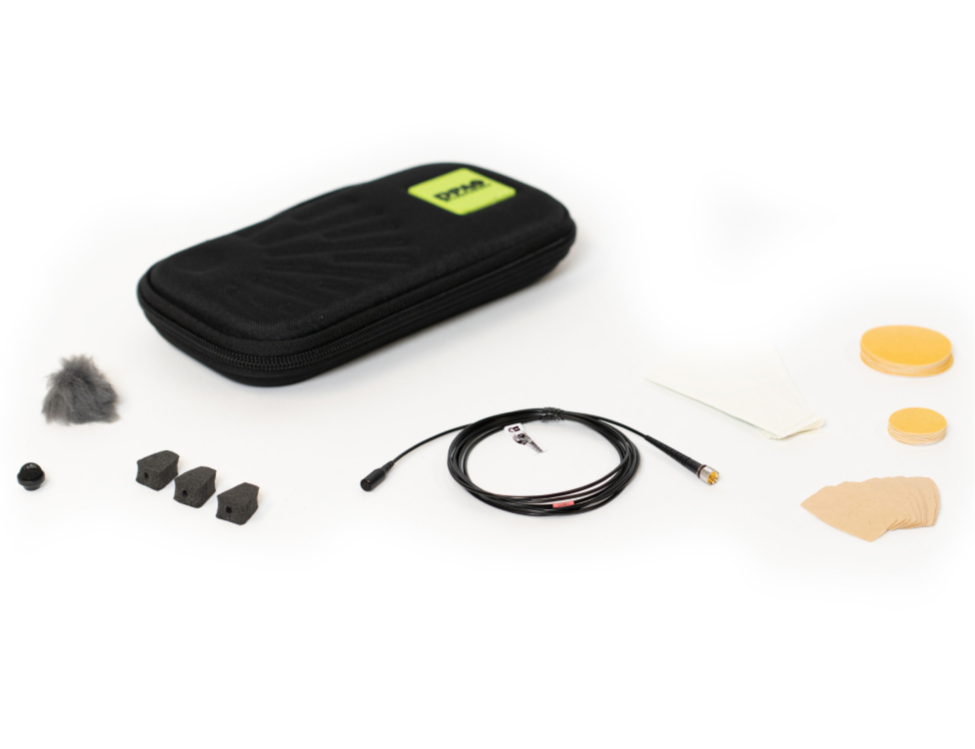

The Film Microphone Kit is delivered in a sturdy case with a transparent lid. Inside there is room for the microphone, one or more adapters and various microphone concealment fixtures.
- directional pattern: omnidirectional
- principle of operation: pressure
- cartridge type: pre-polarized condenser
- frequency response: 20Hz-20 kHz
- effective frequency range, +/-2 dB: 100Hz-15kHz with typ. 5dB soft boost at 4-6kHz
- sensitivity, nominal, +/-23 dB at 1kHz: 6 mV/Pa, -44dB re. 1V/Pa
- equivalent noise level, A-weighted: typ. 26dB(A) re. 20µPa (max. 28 dB(A))
- distortion, THD<1% Legacy: 120 dB SPL RMS, 123 dB SPL peak
- distortion, THD<1% CORE: 134 dB SPL RMS, 137 dB SPL peak
- dynamic range Legacy: typ. 97dB
- dynamic range CORE: typ. 111 dB
- max. SPL, THD 10%: 144 dB SPL peak
- rated output impedance: 30-40 Ohm
- cable drive capability: up to 300 m with DAD6001-BC XLR adapter
- power supply (for full performance): for wireless systems min. 5V to max. 10 V through DPA adapter
- power supply (With DAD6001-BC): P48 (Phantom Power), will work from 12V
- current consumption: typ. 1.5 mA (microphone) & 3.5 mA with DAD6001-BC XLR adapter
- connector: MicroLock
- weight: 7.5g incl. cable and MicroLock connector
- microphone diameter: 5.4 mm
- microphone length: 17.6 mm
- cable length: 1.8 m
- polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
- temperature range: -40°C to 45°C
- relative humidity (RH): up to 90%
Brand | DPA |
---|
