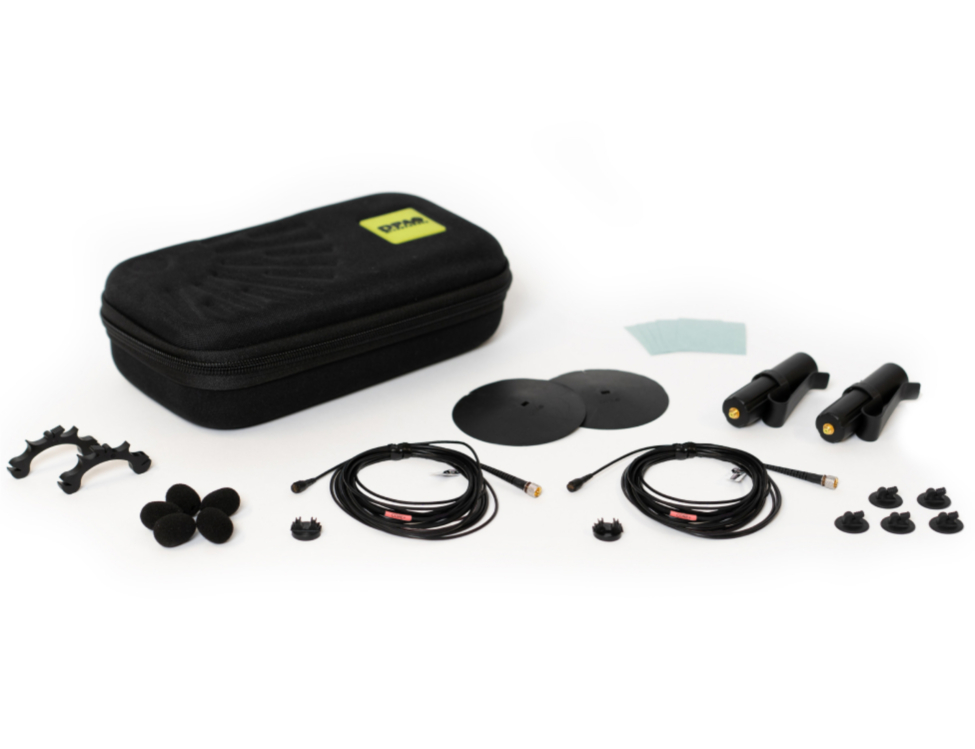

DPA 4061 CORE+ stereo kit
DPA has collected the award-winning miniature microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.
CORE+ takes your miniature mic to the next level, neutralizing distortion across the entire dynamic range. MicroLock - A dependable, secure locking microphone connector with limitless flexibility and reassuring reliability.
This kit is perfect for broadcasters, TV studios, news anchors and other public speakers.
It is a robust and unobtrusive solution, the tiny 4061 Miniature Omnidirectional Microphone, Normal SPL is placed in the smallest holder on the market where it is protected from rough handling.
This mic is very natural sounding, offering great detail and resolution. It has a very low noise floor, impressive sensitivity and can handle high SPL.
- directional pattern: omnidirectional
- principle of operation: pressure
- cartridge type: pre-polarized condenser
- frequency range: 20Hz-20kHz
- frequency range, +/-2dB: soft boost grid (20Hz-20kHz), 3 dB soft boost at 8-20kHz, high boost grid (20Hz-20kHz), 10 dB boost at 12 kHz
- sensitivity, nominal, +/-3dB at 1 kHz: 6 mV/Pa, -44 dB re. 1 V/Pa
- equivalent noise level, A-weighted: typ. 26 dB(A) re. 20 Pa (max. 28 dB(A))
- equivalent noise level, ITU-R BS.468-4: typ. 38 dB (max. 40 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): typ. 68 dB(A)
- total harmonic distortion (THD)-Legacy: <1% THD up to 123dB SPL peak, <1% THD up to 120dB SPL RMS sine
- total harmonic distortion (THD)-CORE: <1% THD up to 137dB SPL peak
- dynamic range-Legacy: typ. 97dB
- dynamic range-CORE: typ. 111 dB
- max. SPL, peak before clipping: 144 dB
- output impedance: 30-40 Ohm
- cable drive capability: up to 300m
- power supply (for full performance): for wireless systems, min. 5V-max. 50V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099, 48V phantom power +/-4 V for full performance
- connector: MicroLock
- weight: 7.5 g incl. cable and MicroLock connector
- microphone diameter: 5.4 mm
- microphone length: 12.7 mm
- cable length: 1.8 m
- polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
- temperature range: -40°C to 45°C
- relative humidity (RH): up to 90%
| Brand | DPA |
|---|
