DPA 4060 CORE+ instrument kit
DPA has collected the award-winning miniature lavalier microphones in specialized kits that contain the mics and accessories you need to capture fantastic sound no matter what you need.
Used with the vast array of complimentary accessories, theminiature microphones are ideal for a broad range of applications. Whether reproducing the voice or an instrument in film, theater, television or other close-miking settings, these mics will not disappoint.
4060 INSTRUMENT MICROPHONE KIT

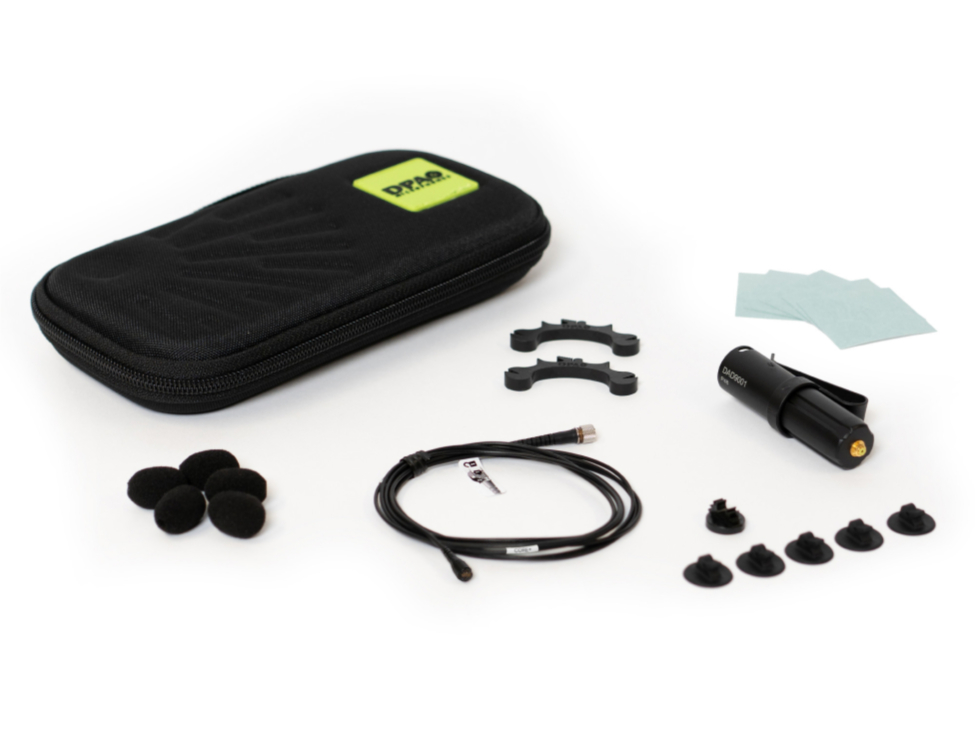

This kit contains a 4060 Miniature Omnidirectional Microphone, Normal SPL with the reinforced cable relief and a XLR Adapter DAD6001-BC and a selection of our unique mounting accessories. The kit is designed to use as a close-miking solution for a wide variety of musical instruments.
This mic offers a very clean, detailed and natural sound quality. This leaves it up to the user to decide on the correct placement to achieve the desired timbre.
- directional pattern: omnidirectional
- principle of operation: pressure
- cartridge type: pre-polarized condenser
- frequency range: 20Hz-20kHz
- frequency range, +/-2 dB: soft boost grid (20Hz-20kHz), 3dB soft boost at 8-20kHz High boost grid (20Hz-20kHz), 10 dB boost at 12 kHz
- sensitivity, nominal, +/-3dB at 1kHz: 20 mV/Pa, -34 dB re.1 V/Pa
- equivalent noise level, A-weighted: typ. 23dB(A) re.20 Pa (max. 26 dB(A))
- equivalent noise level, ITU-R BS.468-4: typ. 35dB (max. 38 dB)
- S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): typ. 71dB(A)
- total harmonic distortion (THD)-Legacy: <1% THD up to 123dB SPL peak, <1% THD up to 120dB SPL RMS sine
- total harmonic distortion (THD)-CORE: <1% THD up to 129dB SPL peak
- dynamic range-Legacy: typ. 100dB
- dynamic range-CORE: typ. 106dB
- max. SPL, peak before clipping: 134dB
- output impedance: 30-40 Ohm
- cable drive capability: up to 300m (984ft)
- power supply (for full performance): for wireless systems, min. 5V-max. 50V through DPA adapter. With DAD6001-BC/DAD6024/DAD4099, 48V phantom power +/-4V for full performance
- connector: MicroLock
- weight: 7.5 g incl. cable and MicroLock connector
- microphone diameter: 5.4 mm
- microphone length: 12.7 mm
- cable length: 1.8 m
- polarity: positively increasing sound pressure produces positive going voltage on MicroLock pin
- temperature range: -40°C to 45°C
- relative humidity(RH): up to 90%
