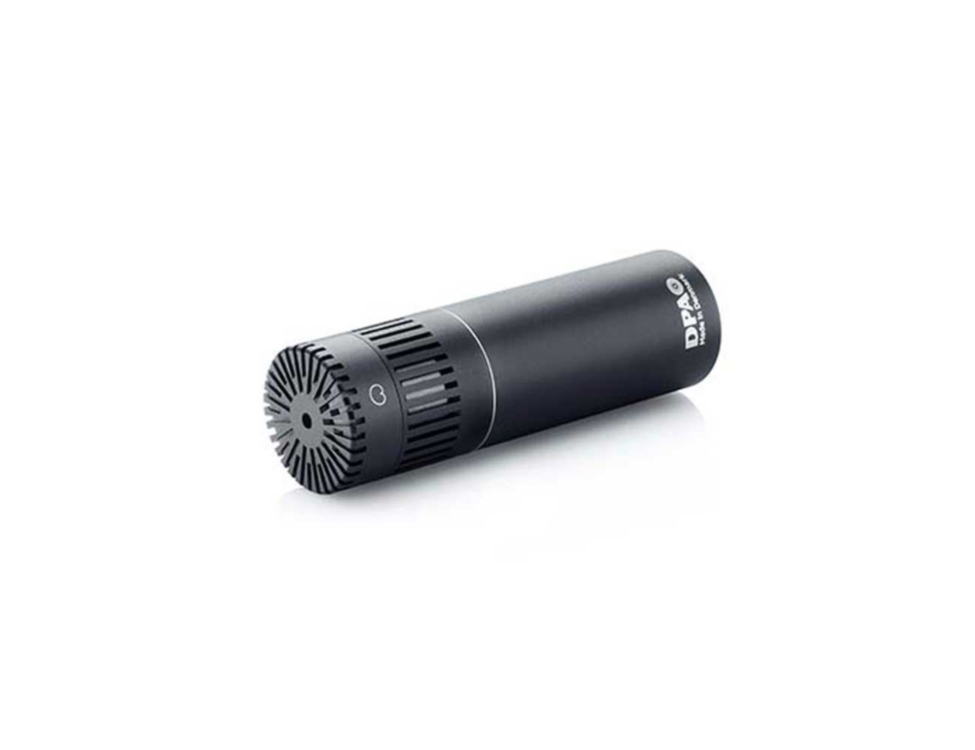

DPA 4011C
d:dicate 4011C cardioid microphone, compact.
- Close-miking
- Superior for high sound levels
- Accuracy
- Colorless
Maximum clarity, minimum visibility: DPA's compact cardioid range is proof that stunning clarity and absolute neutrality are not solely the characteristics of full-sized studio condenser mics alone. Designed to be hidden from view, the diminutive design and high performance of the DPA 4011C makes it the outstanding choice for unobtrusively miking all types of television, film, theatre, concert and studio performances.
Limited in size, not application: capable of handling high SPL's without distortion, the 4011C is perfectly tailored for close-miking applications, minimizing bleed from other instruments. When used to spot-mike larger orchestras, these mics are hard to beat, and in film and TV studios, they are excellent for off-camera voice recording or foley work. For live on-camera recordings, their matte black finish gives them a classic yet inconspicuous appearance, while for sound reinforcement in concert halls, theatres and houses of worship, they provide clean, natural sound while reducing the noticeable effect of lighting reflection.
- Directional pattern: cardioid
- Principle of operation: pressure gradient
- Cartridge type: pre-polarized condenser
- Frequency range: 20Hz to 20kHz
- Frequency range, +/-2dB: 40Hz to 20kHz
- Sensitivity, nominal, +/-2dB at 1kHz: 10mV/Pa, -40dB re. 1V/Pa
- Equivalent noise level, A-weighted: typ. 18dB(A) re. 20uPa (max. 20dB(A))
- Equivalent noise level, ITU-R BS.468-4: typ. 25dB
- S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL): typ. 76dB(A)
- Total harmonic distortion (THD): <1% up to 139dB SPL peak
- Dynamic range: typ. 121dB
- Max. SPL, peak before clipping: 159dB
- Output impedance: 100Ohm
- Minimum load impedance: 2kOhm
- Cable drive capability: 100m
- Output balance principle: Impedance balancing with "Active Drive"
- Common mode rejection ratio (CMRR): >50dB
- Power supply (for full performance): 48V Phantom power (+/-4V)
- Current consumption: 2.8mA
- Connector: XLR-3M. pin 1: shield, pin 2: signal + phase, pin 3: phase
- Color: matte black
- Weight: 58g
- Microphone/capsule diameter: 19/19mm
- Microphone length: 64mm
- Maximum output voltage, RMS: >4V
- Polarity: +V at pin 2 for positive sound pressure
- Temperature range: -40°C to 45°C
- Relative humidity (RH): up to 90%
- Matching tolerance (frequency response and sensitivity): +/-1dB
- Phase deviation for kit: <10°
| Brand | DPA |
|---|
