DPA 4006C

article code
d.4006c

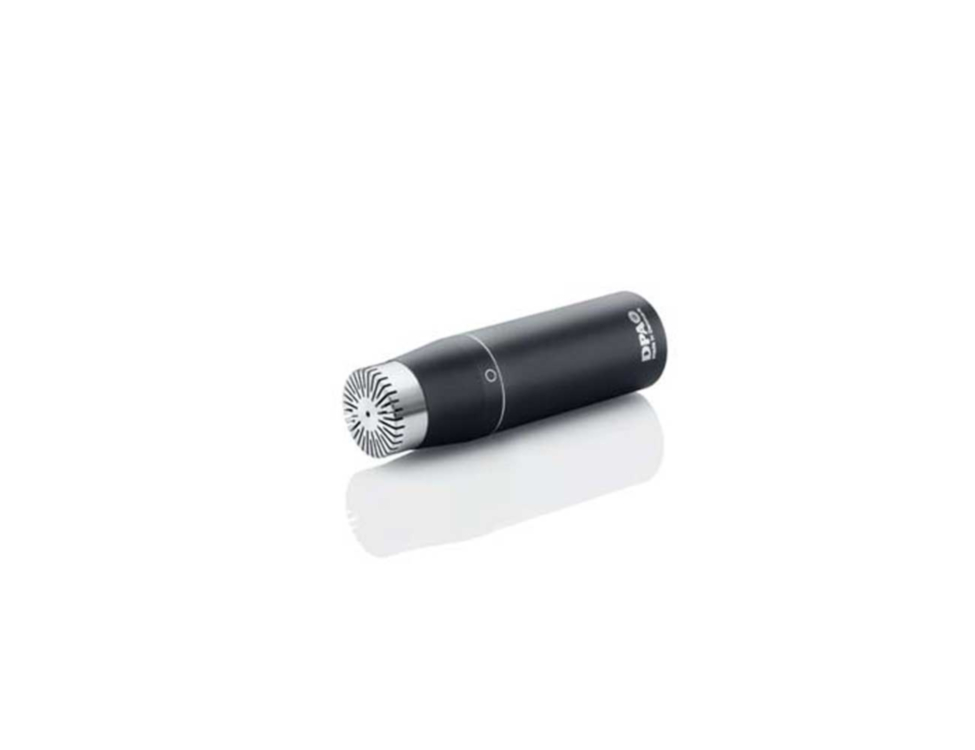

DPA 4006C omni-directional modular microphone, MMP-C compact preamp with MMC4006 capsule
€ 1,955.00 List Price
€ 2,229.00 Our Price € 1,842.15 Our Price

d:dicate 4006C omni microphone, compact.

  • Neutrality
  • Versatility
  • Precision
  • Recording standard

Full-bodied sound from a small-bodied mic: wherever a small, lightweight, inconspicuous microphone for top-quality recording is required, the compact design and clean, transparent sound of our versatile 4006C makes it the perfect choice. They are particularly popular as A-B stereo pairs in concert halls where quality recordings can sometimes be compromised by classic architecture.

The 4006C can be mounted, hung or concealed to create clean, transparent recordings. It is ideal in theatres, opera and concert halls or places of worship where there is a live audience, and for film applications, both in the studio and on location. These mics are also popular with musicians for close-miking instruments such as double bass, trumpet and piano. At the same time they are wonderful for ambience miking on soundstages, in sports stadiums and other environments where audience sound needs to be recorded.

Several tools in one: a selection of acoustic modification accessories, including nose cone and interchangeable protection grids, allows the 4006C to be acoustically transformed into different microphone versions, making it the most multifaceted mic in your collection and a tremendous value. By simply changing a grid, it is possible to gain several unique frequency responses and directional characteristics from a single mic. Furthermore, these grids and elements will not produce any phase shift, noise or distortion that would otherwise be introduced by an electrical filter.

  • Directional pattern: omnidirectional
  • Principle of operation: pressure
  • Cartridge type: pre-polarized condenser
  • Frequency range: 10Hz to 20kHz
  • Frequency range, +/-2dB: 20Hz to 20kHz
  • Sensitivity, nominal, +/-2dB at 1kHz: 40mV/Pa, -28dB re. 1V/Pa
  • Equivalent noise level, A-weighted: typ. 15dB(A) re. 20uPa (max. 17dB(A))
  • Equivalent noise level, ITU-R BS.468-4: typ. 27dB (max. 29dB)
  • S/N ratio (A-weighted), re. 1kHz at 1Pa (94dB SPL): typ. 79dB(A)
  • Total harmonic distortion (THD): <1% up to 134dB SPL peak
  • Dynamic range: typ. 119dB
  • Max. SPL, peak before clipping: 139dB
  • Output impedance: 100Ohm
  • Minimum load impedance: 2kOhm
  • Cable drive capability: 100m
  • Output balance principle: Impedance balancing with "Active Drive"
  • Common mode rejection ratio (CMRR): >50dB
  • Power supply (for full performance): 48V Phantom power (+/-4V)
  • Current consumption: 2.8mA
  • Connector: XLR-3M. pin 1: shield, pin 2: signal + phase, pin 3: phase
  • Color: matte black
  • Weight: 63g
  • Microphone/capsule diameter: 19/16mm
  • Microphone length: 64mm
  • Maximum output voltage, RMS: 4.5V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C
  • Relative humidity (RH): up to 90%
  • Matching tolerance (frequency response and sensitivity): +/-0.5dB
  • Phase deviation for kit: <5°

More Information
BrandDPA
