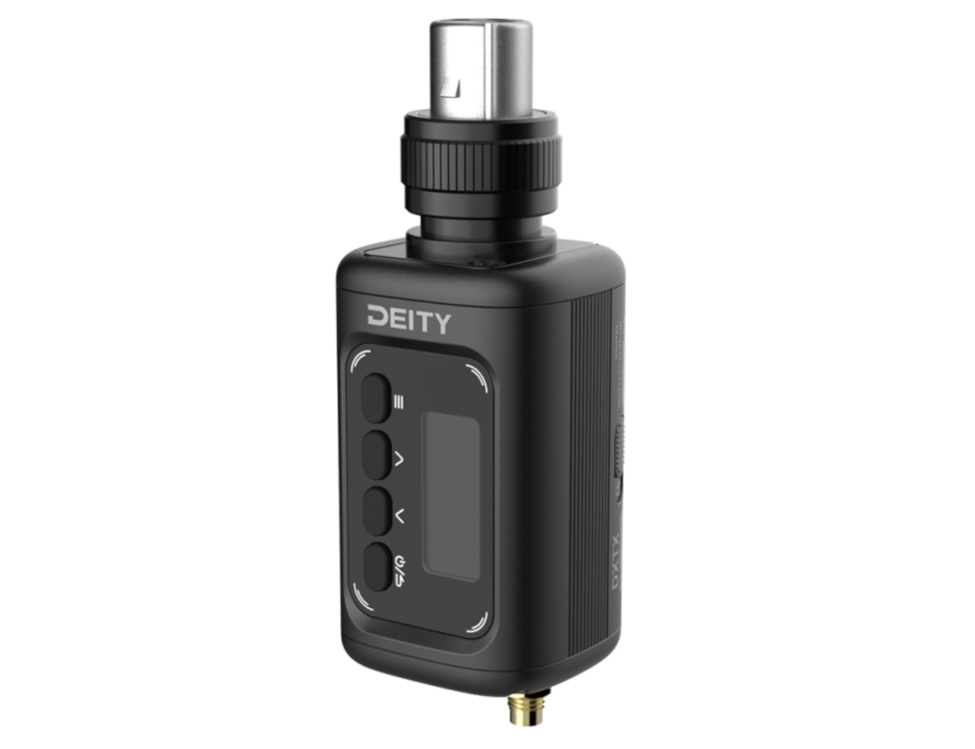

DEITY THEOS DXTX
The Deity DXTX is a cutting-edge plug-on transmitter designed for professionals seeking uncompromising audio quality and flexibility. It offers simultaneous 32-bit float recording and wireless transmission, ensuring pristine audio capture without the need for meticulous gain staging.
Equipped with a Neutrik locking XLR input, the DXTX accommodates a wide range of microphones, providing 48V phantom power for condenser mics and 5V bias for electret mics. Its onboard microSD recorder supports cards up to 128GB, offering ample storage for extended recording sessions.
Designed for versatility, the DXTX operates across a broad UHF spectrum from 550MHz to 960MHz, with a maximum RF output of 100mW, ensuring reliable transmission even in challenging environments.
The device features an analog limiter to prevent clipping during transmission, while preserving the integrity of the 32-bit float recordings. Its dual AA battery configuration provides up to 14 hours of operation, and the USB-C port allows for external power options, catering to various production needs.
The DXTX integrates seamlessly with Deity's BitConnectifyT 2.0 technology, enabling remote control via Bluetooth up to 250 feet. This feature allows users to adjust settings, monitor battery status, and control recording functions without physically accessing the device.
The full-color display offers clear visibility of operational parameters, and the external SMA antenna ensures optimal signal strength. Additionally, the DXTX is firmware updatable, ensuring it remains current with the latest technological advancements.
Ideal for filmmakers, broadcasters, and content creators, the Deity DXTX offers a robust solution for high-quality audio capture. Its combination of advanced recording capabilities, flexible power options, and remote control functionality makes it a valuable asset in any professional audio setup.
Whether used on a boom pole, handheld, or integrated into a larger system, the DXTX delivers reliable performance and exceptional sound quality.
FEATURES:
- color screen
- 550MHz ~ 960MHz=100mW
- featuring a Neutrik XLR locking input
- dual AA battery/ up to 14Hrs of battery life
- 32-Bit float / 24-Bit with timecode (supports =128GB microSD)
- remote control the DXTX with BitConnectify 2.0/ Up To 250ft bluetooth range
- audio input compatible feature analog 5V Mic Bias and Line signals
- analog limiter
- supports 48V phantom power
- external SMA antenna
- external power via USB-C
- firmware updatable
IN THE BOX:
- 1x DXTX Plug-On Transmitter
- 2x AA Deity batteries
- 1x Antennas
- 1x Antenna cut guide
- 1x warranty QR code card
- RF modulation: proprietary digital RF modulation
- RF freq ranges: according to different regions, the legitimate frequency bands in line with local conditions are allocated
- RF frequency step: 100kHz
- RF bandwidth: 200kHz
- minimum frequency interval: 700kHz
- antenna connector: 50O SMA
- power output: 10/25/50/100mW-software select (varies by regulation)
- dynamic range: 105dB
- distortion: <0.5%
- frequency response: 20~20kHz
- low cut: 0FF/75Hz/100Hz/150Hz
- mic power: MIC-5V,MIC-48V,LINE
- mic connector: XLR 3Pin / XLR 5Pin
- input gain: 0~+42dBu
- ADC bit-depth: 2x 24 bit
- ADC sampling-rate: 48KHz
- clock accuracy: 0.15 PPM (1 Frame in 72 Hours)
- timecode type: LTC(SMPTE)
- timecode frame-rates: 23.98, 24, 25, 29.97, 29.97DF, 30
- media: microSD card (flash memory)
- file format: .WAV
- sample rate: 48kHz
- record format: 24 / 32bit float
- battery type: AAx2
- battery life (48V DEITY AA): 8h+
- dimensions(HxWxD): 119x44.8x42mm
- weight: without battery and antenna: 190g / without battery and with antenna: 196g / with battery and antenna: 228g
- operating temperature: -20°C-45°C
| Brand | Deity |
|---|
