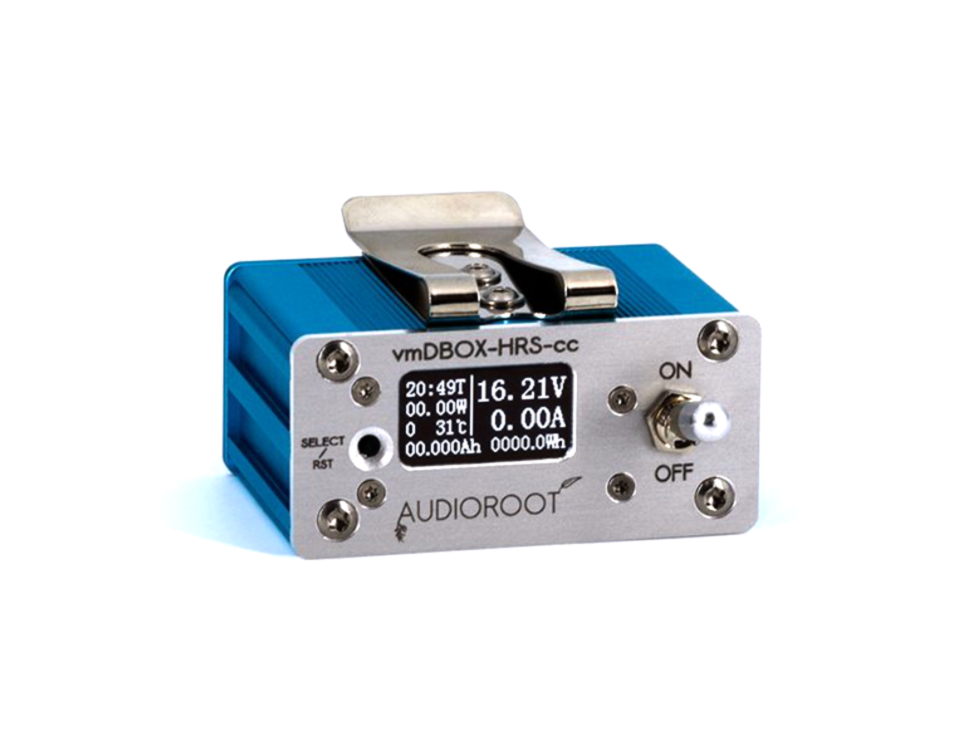

AUDIOROOT vmDBOX-HRScc

The Audioroot vmDBOX-HRS-cc is an ultra-small DC power distribution box with 6 DC outputs and an integrated multi-function meter designed for ENG sound bags. All cables enter and exit from the bottom of the box yielding a much smaller footprint in your bag. The vmDBOX-HRS-cc has a DC input connector and 6 DC outs all on rugged Hirose locking connectors. 5 outputs are protected with a 2.5 amp resettable fuse. One output is left unfused.

FEATURES:

• integrated white OLED display with Voltmeter, Ampmeter, Ahmeter, Wattmeter and timer for battery or power supply monitoring
• 6 power outputs switchable with one rugged locking switch
• 5 x outputs with 2.5A polyswitch resetable fuses
• 1 x unprotected output
• 1 x belt clip mountable on top or bottom of the housing
• compatible with any battery or power supply ranging from 5.0V to 24V DC
• Hirose locking connectors
• very low power consumption : the vmDBOX-HRS-cc does not affect the battery's autonomy
• compact and lightweight: 119g / 65 x 50 x 30 mm
• maximum recommended total current load : 7A
