SOUND DEVICES A20-QuickDock

The A20-QuickDock enables the A20-Nexus / Go to be docked to 833, 888, or Scorpio mixer/recorders. The bottom panel incorporates a multi-pin port that provides convenient power, audio, and timecode connections with no additional cables. This accessory allows the A20-Nexus / Go to connect and disconnect from the 8-Series in seconds with no tools, allowing for easy remote mounting when desired.

Considerations when docking an A20-Nexus on an 8-Series mixer/recorder:

• power must be provided by the 8-Series, the A20-Nexus / Go power inputs (TA4 and PoE+) are disabled
• most A20-Nexus / Go rear panel connectors are disabled apart from the antenna connectors, the USB-A port and the Ethernet ports
• when docked to an 8-Series, the A20-Nexus Ethernet ports can only be used for control, not Dante

The A20-QuickDock comes with the following parts:

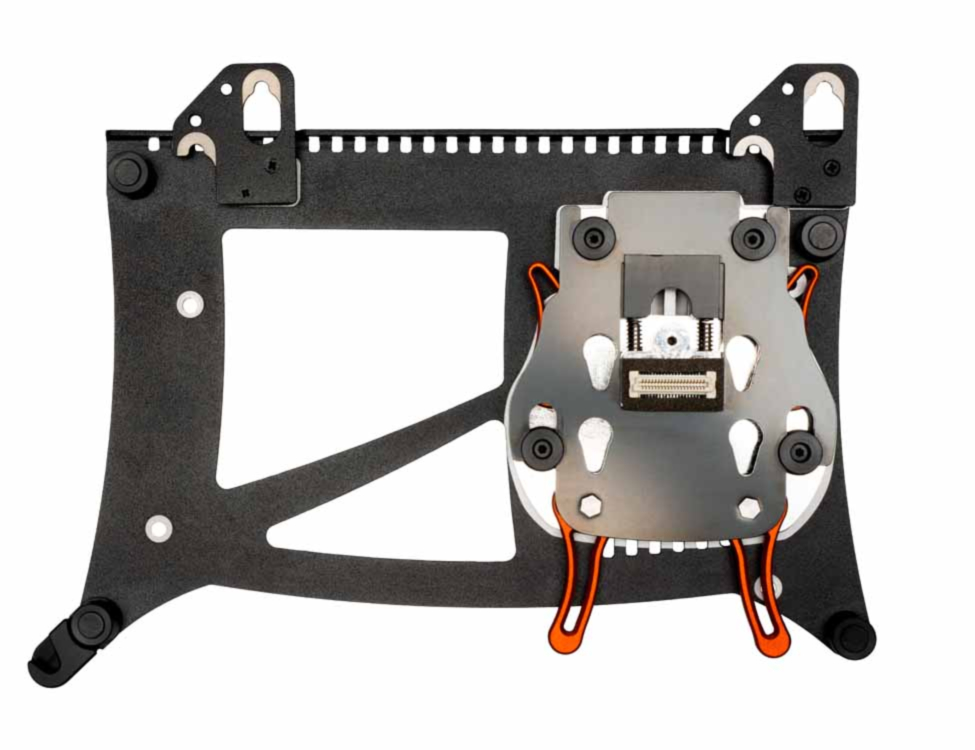

• mounting plate with detachable Quick Release mechanism and multi-pin connector
• 2mm and 1/16'' allen keys
• four 1/16'' allen screws for securing the mounting plate to the bottom of the A20-Nexus / Go
• three long 2 mm and two short 2mm allen mounting pillars for securing the rear of the A20-Nexus / Go with mounting plate to the top of the 8-Series
